1163 MINI MIXER

The mini mixer

this was initially built without a plan to release. Initially for the Gameboy Megamachine project to mix together certain. modular signals. However due to a number of people asking if it will ever come out as a PCB/PANEL project! well got a few available.

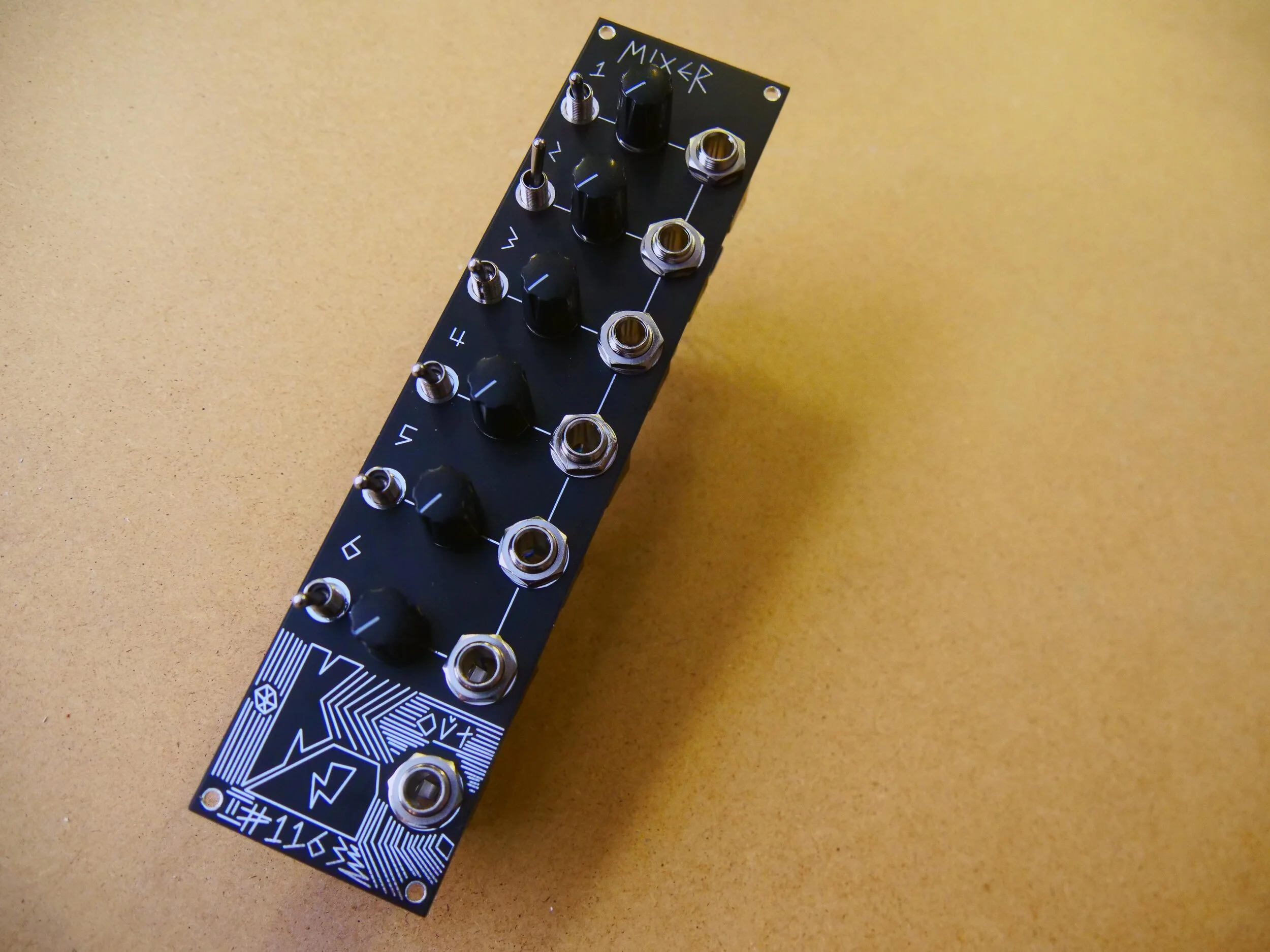

Its very very simple, 6 channel inputs with a mute and a level for each input, and a single output. thats it! super super simple.

The jacks are connected via molex connectors to reduce the need for a second PCB, which in turn reduces the build complications somewhat.

It can be used to mix any voltages, CV, AUDIO, BRAINWAVES, whatever! all the same or different.
