SIMPLE DIY ENVELOPE GENERATOR

moog diy.jpg



Very cut down envelope generator, down to the bare bones. but still extremely useful! ADSR’s are overrated! the best method for envelope generation is the simplest, and i think the one with the ability to change the release to a decay (bottom image) is all you really need to get going.

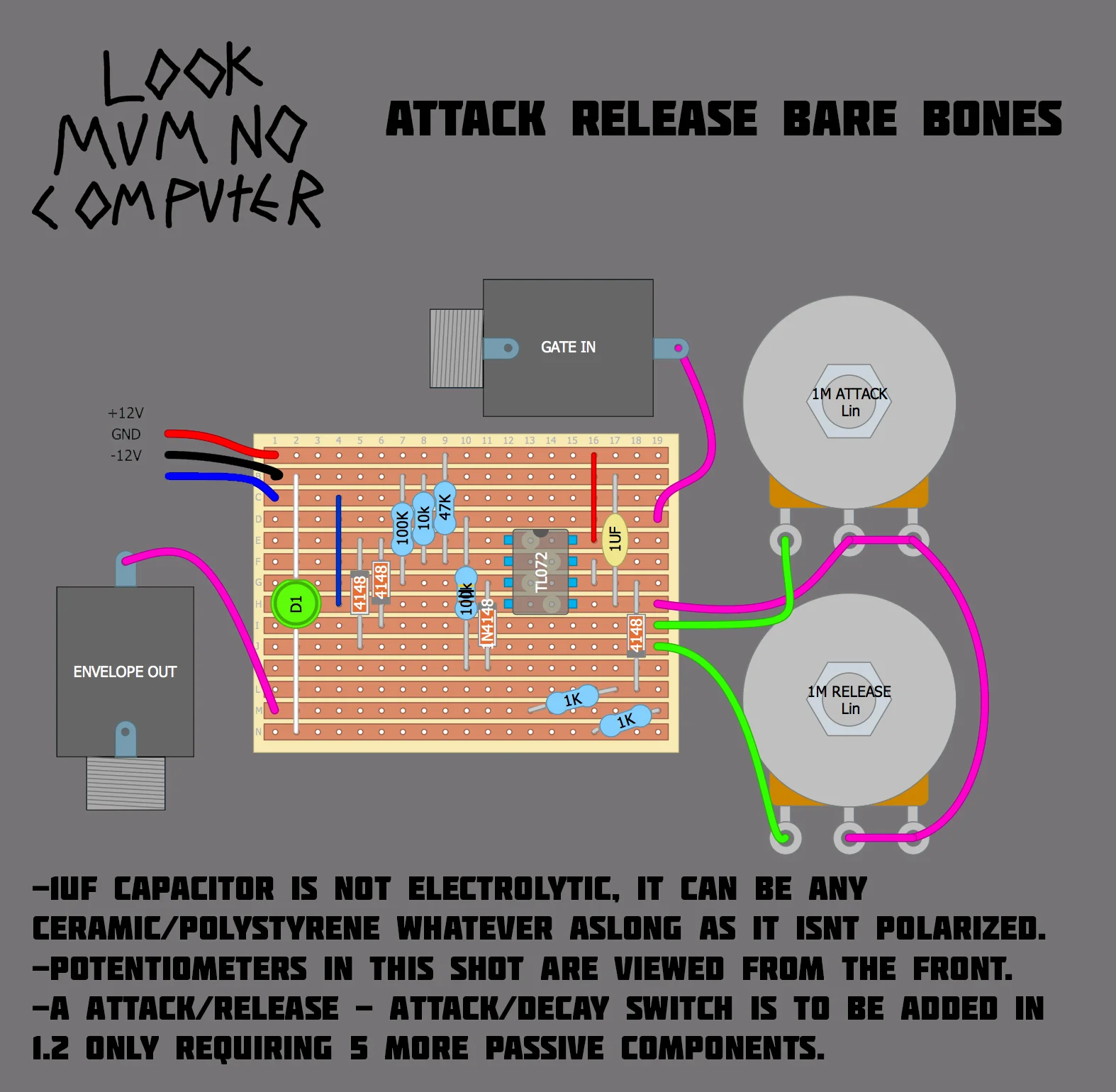

heres the simple version. by the way, if you find it doesnt trigger much! the 100k going from the gate in jack to the 1n4148, change that to a 10k and itll work! i found that out whilst shooting the video and trying to clock it with the drumbrute impact.




2 x 100k resistor (any but metal film is a common one)

1 x 10k resistor

1 x 47k resistor

2 x 1k resistor

4x 1n4148 diode

1x LED (d1) can be any colour its a signal diode, longest let (positive) goes to the bottom of the picture.

1 x TL072 I-amp

1x 1uf capacitor non polarised

2x 1m potentiometer (Linear B, but any will do)

2 x jack sockets

Bit of stripboard

Some wire

there is actually a builders livestream on this on my patreon over at www.patreon.com/lookmumnocomputer where i built this from start to finish, its still up on there!

I will be adding a looping function, which is actually bloody complicated and risks making this a much more complicated task. HOWEVER! the other day walking around i came up with a solution of being able to make it loop with only a couple of extra components, so please await that! it will be up here soon. (if it worked haha).

a schematic of a module coming at the start of february

a schematic of a module coming at the start of february
