VALVE DISTORTING VCA

The safety Valve 2.0 pretty much!

The safety Valve 2.0 pretty much!




This is based on my other project the Safety Valve which is based on the ValveCaster

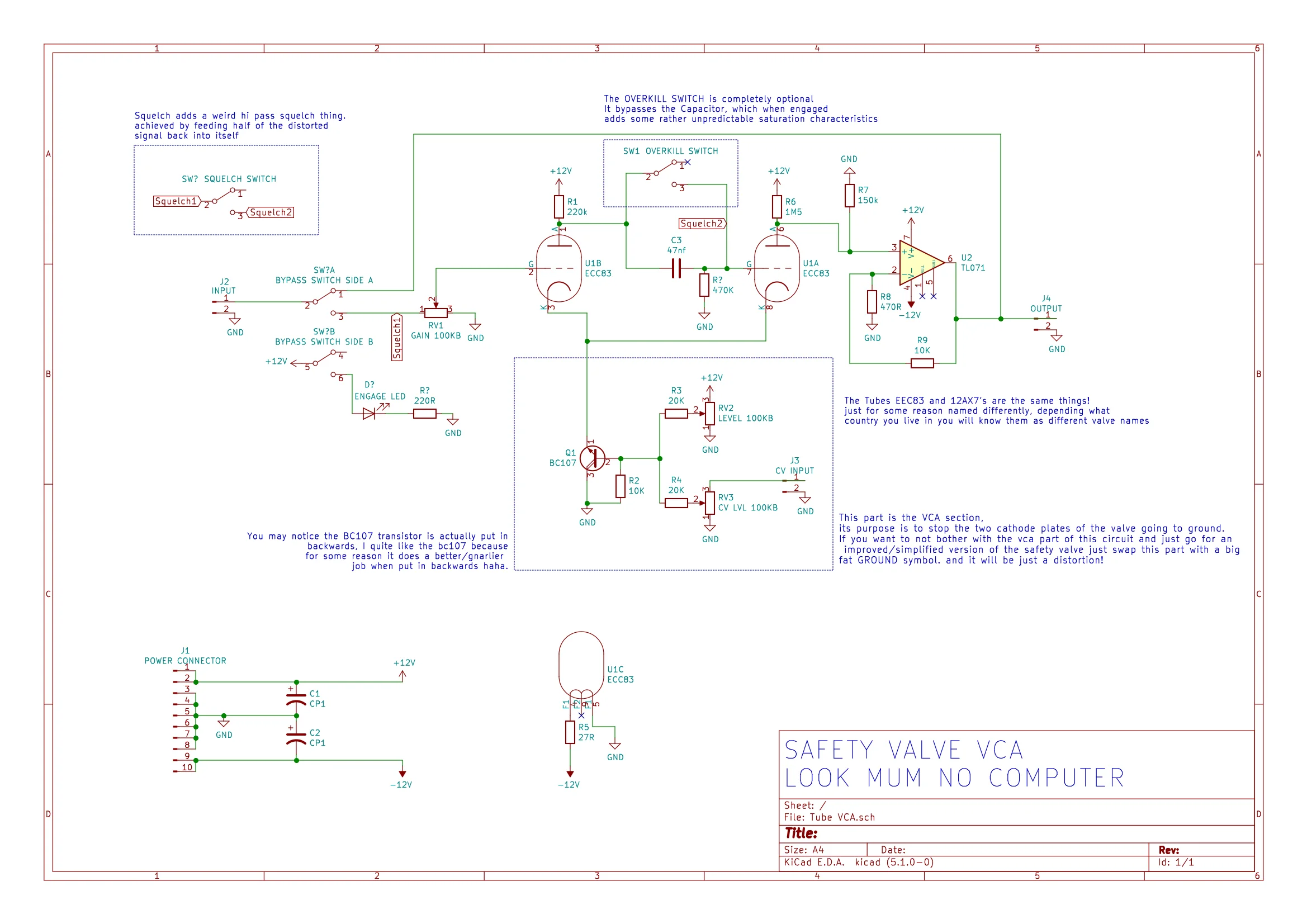

This is designed as a VCA, in the way that it has a transistor wired in backwards to stop its cathode plates going to ground, acting as a rather characteristic voltage controlled amplifier, below is schematic and stripboard. with some nice switch mods!

I WILL BE ADDING THE COMPONENT LIST!!! WITHIN THE NEXT 24 hours! so keep an eye out:)

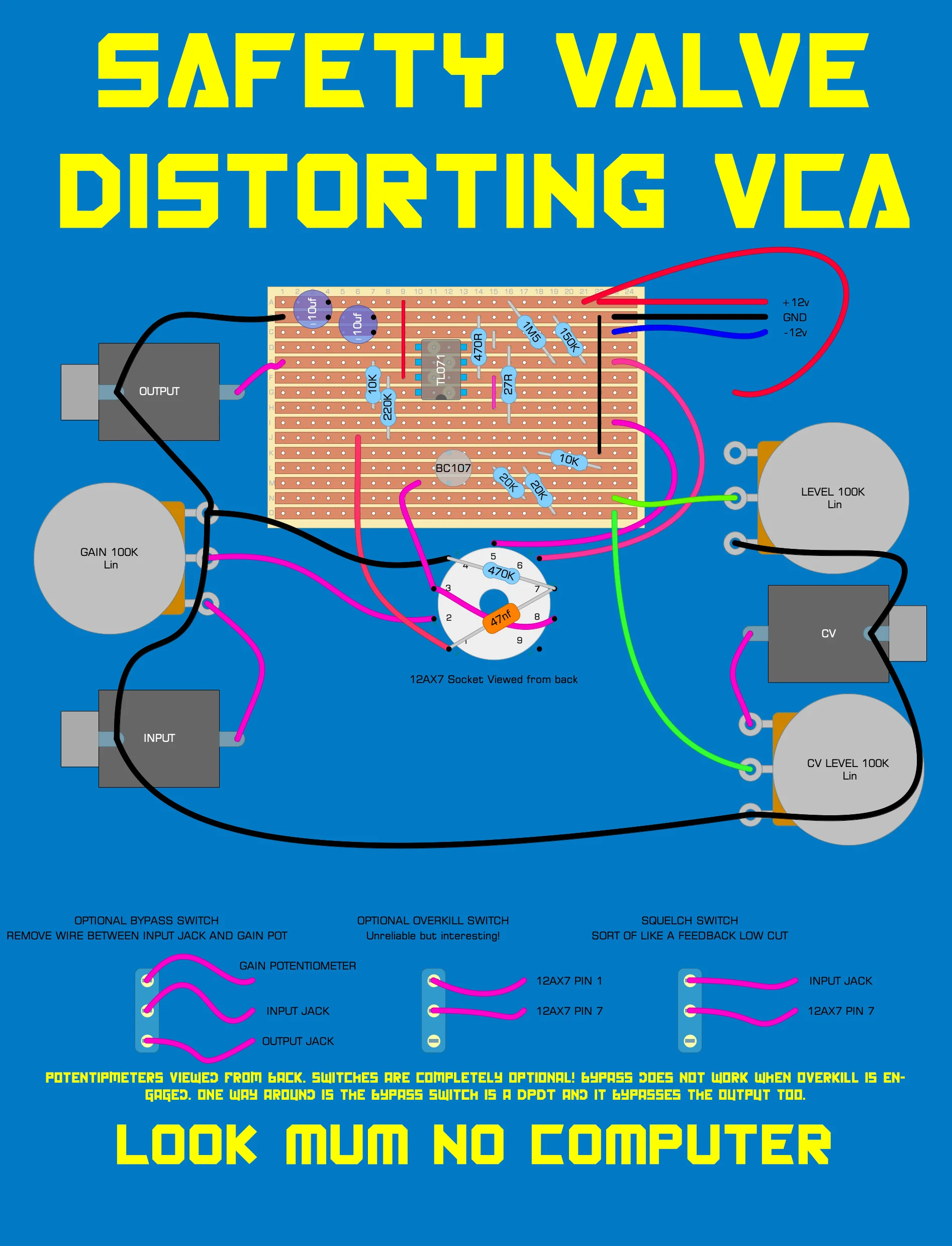

valve vca stripboard
